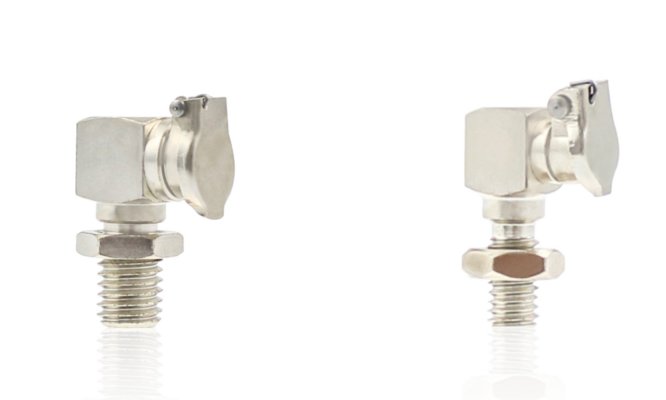

Klappöler DIN 3410 C2
Kontakt
T: +49 (0)3544 55894-30
F: +49 (0)3544 55894-35
info@wagner-technik.eu
| Schlüsselweite [mm] |
Gewinde | Gewindelänge [mm] |
Gesamthöhe [mm] |
Bauform | Werkstoff | Details |
|---|---|---|---|---|---|---|
| ■ 8mm | M5 x 0,8 | 10 | 24 | Form C2 (90°) | Stahl vernickelt | Details |
| M6 x 1,0 | 10 | 24 | Form C2 (90°) | Stahl vernickelt | Details | |
| ■ 10mm | M8 x 1,0 | 13 | 29 | Form C2 (90°) | Stahl vernickelt | Details |
| M8 x 1,25 | 13 | 29 | Form C2 (90°) | Stahl vernickelt | Details | |
| ■ 12mm | M10 x 1,0 | 16 | 31 | Form C2 (90°) | Stahl vernickelt | Details |
| M10 x 1,5 | 16 | 31 | Form C2 (90°) | Stahl vernickelt | Details | |
| R 1/8" | 16 | 31 | Form C2 (90°) | Stahl vernickelt | Details | |
| ■ 14mm | R 1/4" | 15 | 34 | Form C2 (90°) | Stahl vernickelt | Details |
